ETU02: E1 Multiplexer with E1 Sublink and SNMP

12454771245478

Technical Overview:

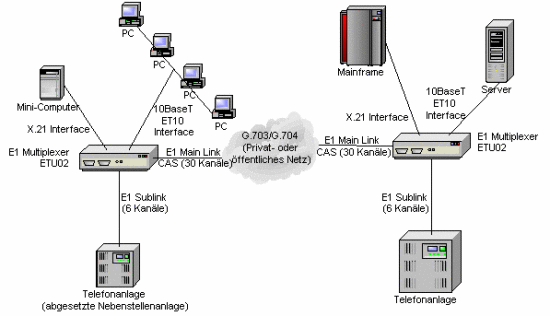

The ETU02-MUX provides an economic multiplexing solution for Fractional E1 network services. Up to four DTE devices may be linked to an ETU02-MUX at data rates of 56Kbps to 1992Kbps. The ETU02-MUX also provides for one optional E1 sub-link which may be connected over a public E1 network. The E1 sub-link will perform Drop & Insert with user-defined timeslot connections from a PABX or other E1 equipment to E1 network services.

The ETU02-MUX supports local control and diagnostics via an LCD display, key pad and LED status indicators located on the front panel or via a serial Craft port. These features enable users to easily configure the unit, execute the in-service diagnostics and monitor the network status.

The ETU02-MUX provides for optional SNMP Network Management System functions, which allow the user to remotely control and diagnose the system.

AC or DC Power available.

Available Interfaces:

  • ETU/V35: V.35 INTERFACE
  • ETU/X21: X.21 INTERFACE
  • ETU/530: RS-530 INTERFACE
  • ETU/449: RS-449 INTERFACE
  • ETU/G64G.703 64k interface module
  • ETU/ET10: 10Base-T Ethernet Bridge
